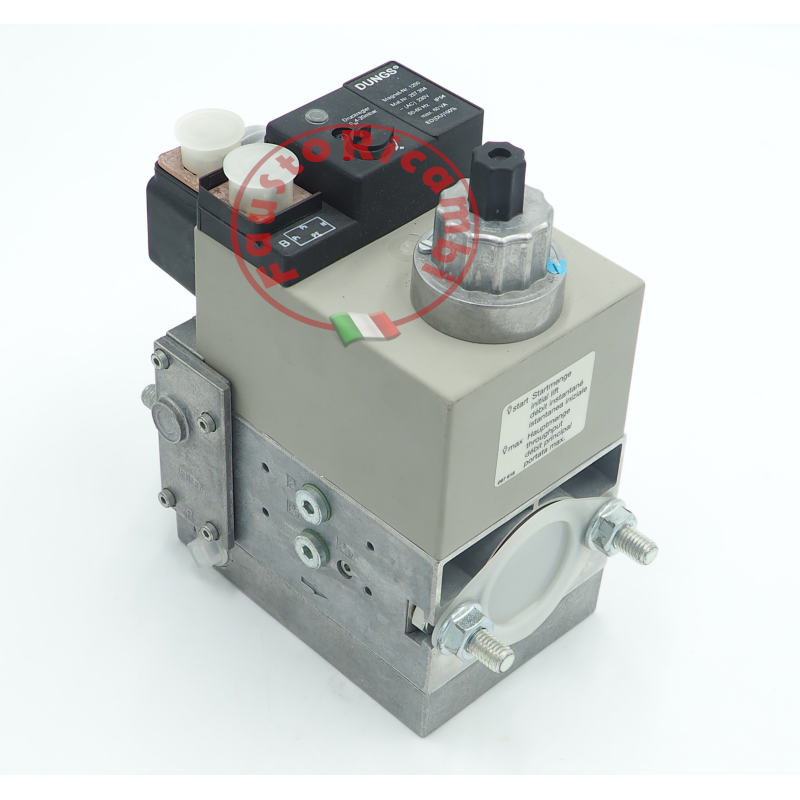

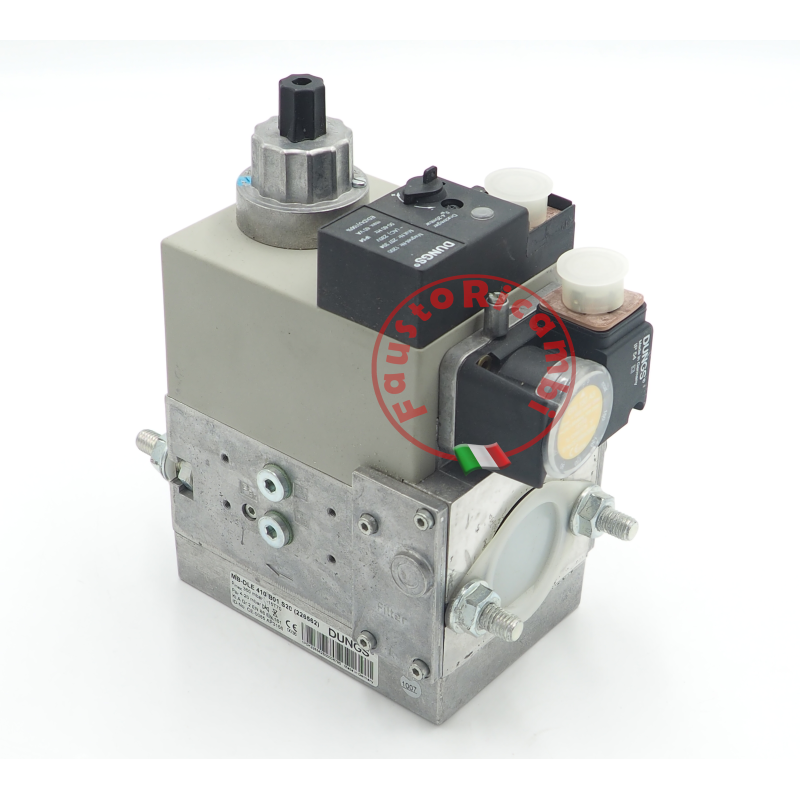

DUNGS MULTI-BLOCK GAS VALVE MB-DLE 410B01S20 0085AP3156 BOILER
| Price: | €1.130,93 VAT included (22%) |
|---|---|
| Freight costs: | From € 12,51 VAT included (22%)Details |
| Item code: | 1028950 |

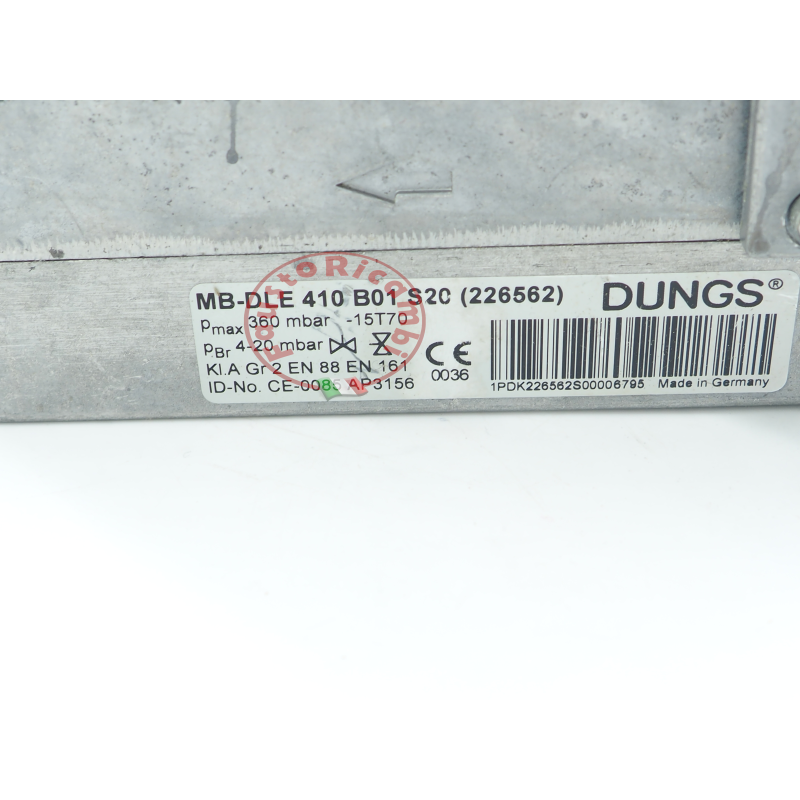

| Supplier code: | MB-DLE 410B01S20 0085AP3156 |
| Condition: | New |
| Marca: | DUNGS |
| Availability: | Available Shipping in 24/48 hours |
| Weight: | 3,000 Kg |
| Quantity: |
Services
PrintUsers feedback
Description
GasMultiBlocCO appliancecombined for regulation / safety
single-stage operation
Technical features
The GasMultiBloc DUNGS appliance is the integration of filter, regulator, valves and pressure switch
in one compact armor. The modular structure makes different designs possible.
- Dustproof device by insert of
fine filtration
- A single regulator and two valves: B01
- Two quick opening valves
- One quick opening valve and one
slow opening
- Electromagnetic valves up to 360 mbar
according to DIN EN 161, class A, group 2
- Adjustment with fine calibration of the ratio
gas - air pressure according to DIN EN 88,
class A, group 2
- High flow rates with minimal drops
of pressure
- DC coil control,
incidence of disturbance N
- Main flow adjustment butterfly
to valve 2
- Hydraulic delay in the opening phase
- Flanged connections with pipe threads
according to ISO 7/1 standards
- Simple assembly, minimum size and weight
The modular mounting system makes it possible to solve individual problems thanks to the external ignition gas socket in combination with separately controlled valves by mounting: valve control system, mini / maxi pressure switches and pressure limiters, limit switches to valve 2.
Field of use
The modular luminaire system makes individual solutions possible in the area of ??safety and control technology
gas. The appliance is suitable for gases of families 1, 2, 3 and other neutral gaseous mediums.
Approvals
Utility model test certificate according to EC directives for gas equipment:
MB-… 405-412 B01 CE-0085 AP 3156
Utility model test certificate according to EC directives for pressure equipment:
MB-… 405-412 B01 CE0036
Approvals in other important gas consuming countries
Gas flow
1. If valves 1 and 2 are closed, compartment A remains under inlet pressure up to the double seat of valve 1.
2. The min. Pressure switch it is connected to compartment A through hole D. If the inlet pressure exceeds the nominal value pre-set on the pressure switch, the latter establishes contact with the boiler.
3. After the release of consent to the boiler, valves 1 and 2 will open. The gas flow will go free through zones A, B and C of the MultiBloc.
