Description

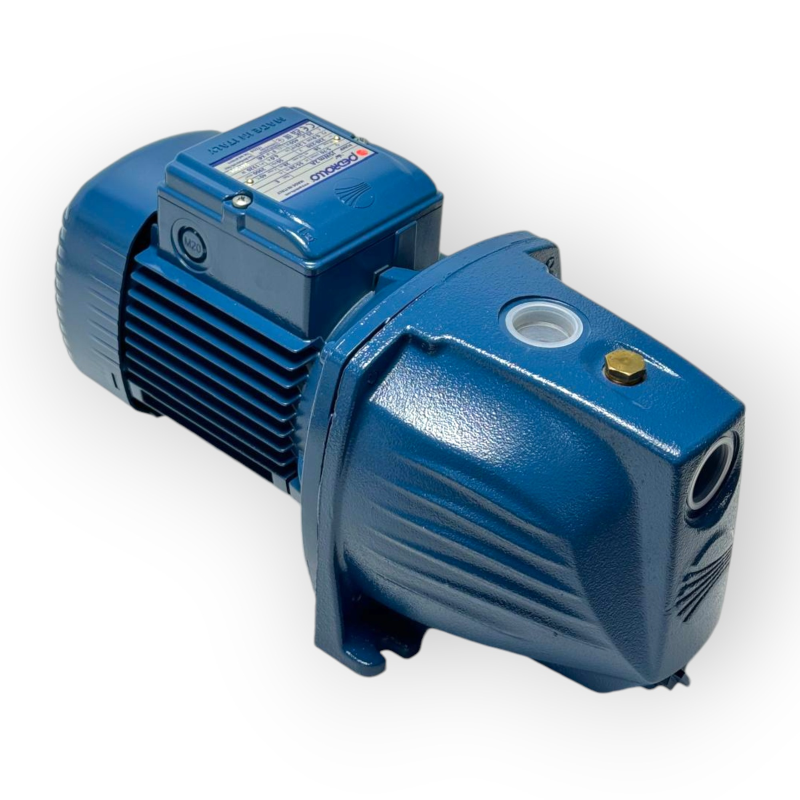

They are recommended for pumping clean water and chemically non-aggressive liquids for the materials from which the pump is made. JSW self-priming pumps are designed to suck water even in the presence of air mixed with the pumped liquid. For their reliability and ease of use, they are recommended for domestic use, especially for the distribution of water in conjunction with small or medium autoclave tanks, for irrigation of vegetable gardens and gardens, etc. The installation must be carried out in well-ventilated closed places or in any case protected from bad weather

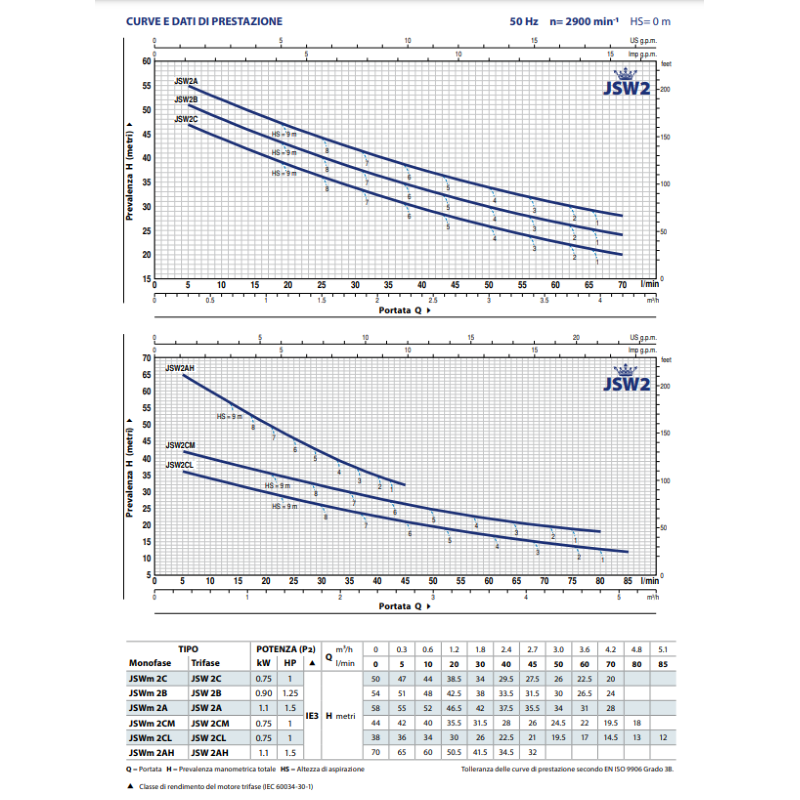

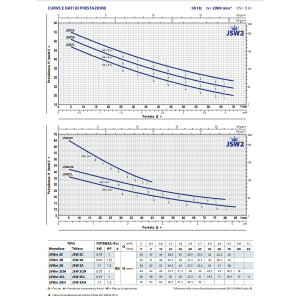

PERFORMANCE FIELD
• Flow rate up to 85 l / min (5.1 m³ / h)
• Head up to 70 m
LIMITS OF USE
• Manometric suction height up to 9 m (HS)
• Liquid temperature from -10 ° C up to +40 ° C
• Ambient temperature up to +40 ° C
• Max pressure in the pump body 7 bar
• Continuous duty S1
EXECUTIONS ON REQUEST
• Other voltages or 60 Hz frequency
• Electric pumps with technopolymer impeller
