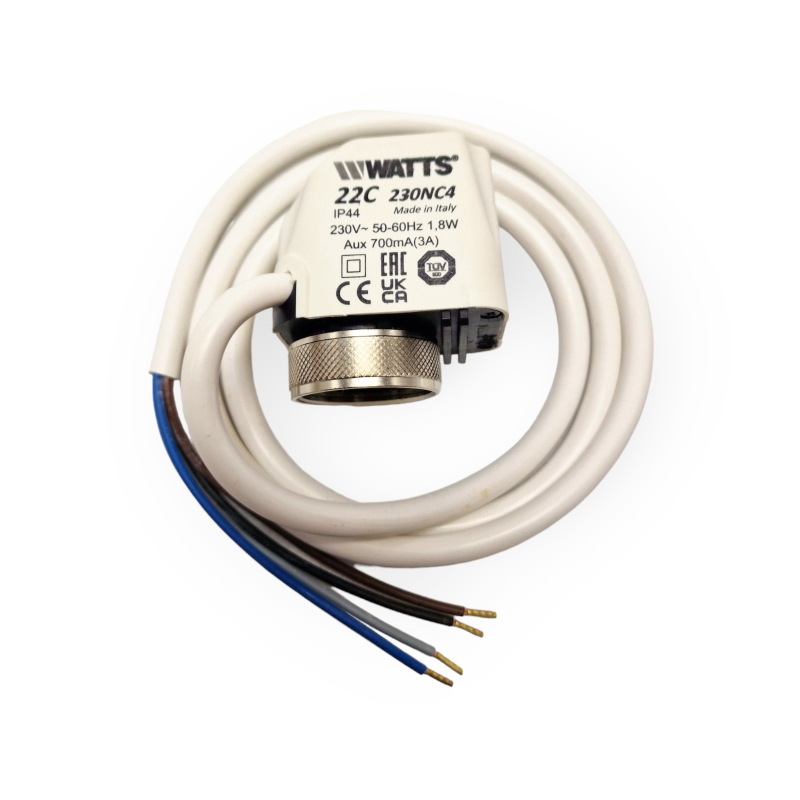

WATTS COMPACT ELECTROTHERMAL ACTUATOR 22C230NC4 230V 4 WIRE WITH MICRO
Price: | €36,91 VAT included (22%) |
---|---|
Freight costs: | From € 8,45 VAT included (22%)Details |
Item code: | 1055800 |
Supplier code: | 10004378 |
Condizione: | New |
Why choose Fausto Ricambi?
Do you need more details? |
|
Availability: | Available Shipping in 24 hours |
Weight: | 0,300 Kg |
Quantity: |
Services
PrintUsers feedback
Description
The Series 22C, 22CX, 22CX5, 26LC electrothermal actuators are ON/OFF devices used for the automatic activation of thermostatic valves, valves for fan coils, manifolds. The electrothermal actuators are available in the following versions:• NA (Normally Open), NC (Normally Closed),
• 2-wire or 4-wire (with auxiliary microswitch), fixable to the valve body with M30x1.5 threaded ring nut.
Compact electrothermal actuator with on/off action compatible with thermostatic radiator valves, fan-coil valves and manifolds. Shell in self-extinguishing polymeric material. Nickel-plated brass threaded ring nut M30x1.5. Normally closed (NC). Normally Open (NO). Stroke: 3.5mm. Shutter thrust: 100N (NC version) - 80N (NO version). Ambient temperature: 0÷50°C. 4-wire version (NA4 – NC4) complete with auxiliary microswitch. Auxiliary contact rating: 700mA inductive-3A resistive. IP44 protection rating in vertical position.
